Wrought Iron Gates in Carlsbad, CA

The frame runs two thousand dollars. Mild steel gates rust when salt moisture reaches the surface, as the notes at wrought iron gates carlsbad go dirty girl describe. The metalgate spec calls for a galvanized coating in san diego county and uses steel tubing for the frame. The estimate includes hardware, hinges, and a basic latch set. Labor for concrete footings adds another five hundred.

Material Options

In carlsbad the marine layer carries chloride that attacks bare metal. Aluminum picket sections resist red rust but pit near the agua hedionda lagoon. Wrought iron frames are no longer milled commercially so most orders use mild steel tubing for the frame. The chloride load peaks during summer mornings when the marine layer sits low. Designers often specify a thicker wall tube to slow penetration. A protective wax coat can be applied before installation.

Coating Systems

A duplex system of hot dip galvanized base followed by a powder coat extends service life beyond either layer alone. The zinc sacrifices itself at scratches while the top coat blocks UV at batiquitos lagoon. Specifying a powder coat over galvanized steel is standard for coastal jobs. The zinc layer typically measures four to six mils thick after the dip. Powder coat thickness of two mils provides a durable color barrier. Recoat intervals of ten years are common in this zone.

Galvanic Concerns

Joining dissimilar metals without isolation creates a galvanic cell when salt moisture bridges them. An aluminum gate on a steel post near interstate 5 will corrode the aluminum rapidly. Use nylon washers or a dielectric coat at every weld joint. A sacrificial anode can be bolted to the post for added protection. Regular inspection of the isolation washers prevents hidden corrosion paths. Documentation of each joint helps future repairs.

Gate Types

A dual swing gate with a heavy duty operator fits a wide driveway, while a single swing gate suits a narrow entry. Cantilever slide gate designs eliminate a ground track and reduce maintenance on sandy soil near oceanside. Choose the operator rating for the leaf weight. The operator motor should be rated for at least twice the leaf weight. A battery backup keeps the gate functional during power loss. Limit switches prevent over travel on the slide track.

Maintenance Notes

Inspect the powder coat annually for chalking and touch up any exposed zinc. Clean the picket and frame with fresh water after a marine layer event. Lubricate the gate opener hinges and check the latch alignment each season. A soft brush removes salt deposits without damaging the coating. Touch up any chips within forty eight hours to stop underfilm corrosion. Record the date of each service in the maintenance log.

By the time the second panel is off the track, the decision has already been made. the wrought iron gates carlsbad go dirty girl uses a three point measurement at top middle and bottom because posts and walls are often out of plumb and the narrowest point controls the gate width. a metal gate in carlsbad must also account for the marine layer that keeps steel wet and the loose sandy soil near agua hedionda lagoon and batiquitos lagoon which reduces lateral support. the hinge post carries the leverage of the whole gate so it must be stiffer and better anchored than the latch post.

Measure the Opening

Measure the opening at the top middle and bottom because posts and walls are often out of plumb and the narrowest point controls the gate width. Run a steel tape from the inside face of each post at the top, middle, and bottom, record each dimension in inches, and compare the three numbers before ordering tubing for the frame. A single width measurement will not capture the variation and can leave a gap at the hinge side that later forces a field cut.

Check Grade and Swing Path

Check the grade across the swing path because a gate swinging toward rising ground will strike it unless it swings the other way is cut to follow the slope or uses rising hinges. Use a level or transit to measure the rise over the full travel of a swing gate or slide gate and note any change greater than a quarter inch per foot. Adjust the hinge placement or select a cantilever gate if the run back space is limited and the grade cannot be corrected.

Locate Utilities and Prepare Footings

Underground utility lines must be located and marked before any post holes are dug. Call 811 and wait for the mark out before you bring the auger to the site. In loose sandy or silty soil near the lagoons the hinge post carries the leverage of the whole gate so it needs a wider or deeper concrete footing than the latch post. Pour a minimum 12 inch diameter footing for the hinge post and an 8 inch footing for the latch post using a 3000 psi mix and allow 24 hours cure before setting the post.

Protect Finish and Clear Vegetation

Redirect sprinkler heads aimed at the gate area so steel stays dry and the powder coat or galvanized finish lasts. Clear vegetation from the swing path and fence line so leaves and soil do not sit against the bottom rail and trap moisture. Install the operator and gate opener after the frame is welded and the pickets are aligned, then test the travel limits and adjust the force settings before handing the job over.

A Carlsbad homeowner standing at the curb with a remote in hand usually discovers the real constraints only after the installer walks the property. The decision between automating a swing gate or switching to a slide gate starts with physical reality, not preference.

Measure the Real Space First

Every swing leaf demands a clear arc equal to its width on the side it opens toward. In Carlsbad neighborhoods where driveways run tight against garages, planters, or stone steps, that arc often disappears before the gate reaches ninety degrees. A parked car in the courtyard, a built in bench, or a raised entry pad can block the leaf halfway. No operator can push through a fixed object.

Slide gates trade the swing arc for a straight runback along the fence line. The clear strip must run the full opening width plus overlap for the tail. On lots where the driveway hugs the property line, that strip may not exist. Utility boxes, irrigation risers, a neighbor's fence post, or a mature pepper tree can each kill a slide layout. Walk the line with a tape measure before you choose.

Slope Changes Everything

Rising driveways are common in the hills above La Costa and around Calavera Hills. An inward swinging leaf on a slope hits rising pavement before it finishes opening. The fixes (rising hinges, an angled cut on the leaf bottom, or switching to a slide gate) each add cost and complexity. An operator cannot force a gate through the ground.

A slide gate needs a level travel path. If the natural grade falls away from the opening, the gate will accelerate when released and can run away. The track or cantilever rail must be built level, with positive stops at both ends. That often means a concrete beam or a raised track section, which adds to the project scope.

Coastal Salt and Blown Sand

West of the freeway, from the Village through Terramar and Barrio, salt air and wind blown sand set the maintenance calendar. Sand settles in ground tracks and jams wheels. A track gate in that zone needs weekly sweeping during windy months or it will stall. Cantilever gates keep the driveway clear of a track, but the rollers and guide rails still collect salt film.

Specify hot dip galvanized steel before powder coat, stainless fasteners, sealed bearing rollers, and an operator housing rated for corrosive environments. Plain steel chain and standard gear rack rust quickly within sight of the water. A freshwater rinse of hinges, rollers, gear rack, and photo eye lenses every few months, followed by relubrication, slows corrosion and keeps sensors reading clearly.

Wind Load on Solid Infill

Privacy panels or solid sheet infill turn a wrought iron gate into a sail. Fall Santa Ana gusts load a long swing leaf and its operator arm hard. Open picket designs pass wind. A slide gate on quality guide rollers handles wind load better than a long swing leaf held by a single arm. If the design calls for solid infill, size the operator and hinges for the added force, or plan for a slide layout.

Operator Types and Mounting Reality

Swing operators come in three main styles. Linear piston arms need precise setback from the hinge line to the pillar face. Articulated arms fit deep or thick pillars where a linear arm will not reach. Underground operators hide the hardware but sit in a pit that must drain well; standing water in the pit kills the motor.

Many Carlsbad pilasters are stucco over block or wood framing. Operator brackets must bolt into grouted block, concrete, or a steel post. Brackets anchored into stucco skin or hollow block cells loosen under repeated force and crack the finish. Verify the substrate before you order hardware.

Slide operators mount on a concrete pad beside the opening. The drive gear meshes with a rack bolted to the gate frame. The gear to rack gap must stay correct as the gate and posts settle. Too tight and the gear grinds. Too loose and it skips teeth. Plan to have the mesh checked at each service visit.

Fix the Gate Before You Automate It

The leaf should move by hand with one finger of steady effort. No sag, no drag, no bind. An operator added to a sagging wrought iron leaf wears out gears and trips obstruction sensing. It does not cure the sag. Long, heavy ornamental leaves can exceed a residential arm's rating even when the weight alone looks fine. Get actual leaf weight and length to the installer.

Converting a swing gate to a slide gate means rebuilding it. Swing leaves lack a bottom rail sized for wheels or a cantilever frame with a counterbalance tail. Low scrollwork can interfere with rollers. Expect to fabricate a new frame or substantially rebuild the existing one, not just bolt wheels on.

Safety Layers Are Not Optional

Photo eyes must cover the opening and the travel path on both sides of the gate. Contact edges on the leading edge, and on the swing side's hinge or post area where entrapment is possible, add a second layer. Relying only on the motor's built in reverse is not enough.

Test safety devices monthly. Close the gate and place a soft object such as a trash bin in its path. It should stop and reverse. Block a photo eye mid cycle and confirm the gate stops. Clean the lenses during the same test.

Guard pinch points. On swing gates, the gap at the hinge side can trap fingers. On slide gates, openings between pickets can pull a hand into the rollers or the post as the gate passes. Add fine mesh screening to the lower section of the gate's travel area, or to the whole leaf where children are present.

Manual Release and Power Backup

Learn the manual release before you need it. Swing arms usually release with a key at the arm. Slide operators release by disengaging the drive gear from the rack. Practice once with the installer, store the key where everyone knows it, and relock the release afterward. A forgotten unlocked release leaves the gate free to move.

Add battery backup. Solar charging works in Carlsbad, but the late spring overcast pattern along the coast can cut solar output for weeks. Size the panel and battery for gray stretches, not for clear days.

Wiring Before Paving

Exit sensing (in ground loops or a buried wand) and the low voltage runs to keypads and photo eyes are easiest to install before new concrete or pavers go down. Retrofitting under finished pavers is disruptive and expensive. Plan the conduit and sensor layout before the flatwork crew arrives.

Provide a Separate Walk Gate

People should never walk through an automated vehicle gate. A separate pedestrian gate removes the reason to cut through the vehicle opening while the gate is moving. This single step prevents more close calls than any sensor.

Maintenance Rhythm

Test safety devices monthly. Lubricate hinges, rollers, and pivot points and inspect for rust every few months, more often near the coast. Schedule a full service yearly covering limits, force settings, battery condition, and anchor bolts. A gate that runs quietly and reverses cleanly is a gate that protects the people who use it.

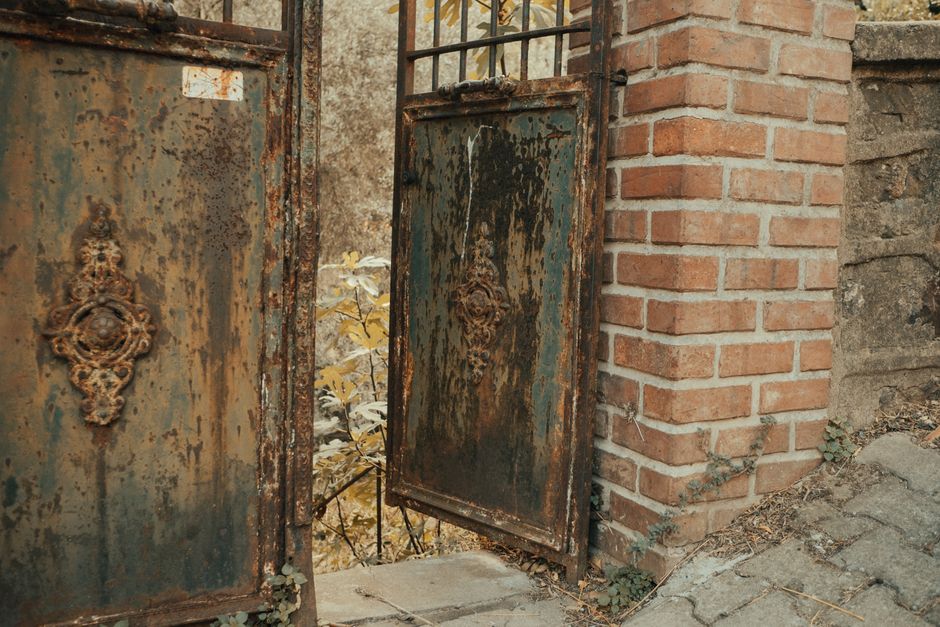

Yes, most old iron gates in Carlsbad can be restored when the frame remains structurally sound and rust has not eaten through critical members.

Understanding What You Have

Most residential gates sold as wrought iron are actually mild steel, either solid bar or hollow tube. True wrought iron shows a fibrous, woody grain where it is deeply corroded or cut. The difference matters because hollow tube can rust through from the inside while looking sound outside, and solid bar rarely does. Before any work begins, identify the material. A magnet test confirms steel. A fresh cut or deep grind on a hidden spot reveals the grain structure.

Where Salt Air Hits Hardest

Carlsbad's coastal air carries salt, especially closer to the beach and around the Agua Hedionda, Batiquitos and Buena Vista lagoons. Salt holds moisture on the metal and speeds corrosion. A gate a few blocks from the water usually degrades faster than one farther inland in neighborhoods like La Costa. Morning marine layer dew settles on horizontal surfaces and lingers in joints. Sprinkler overspray adds mineral-laden water that breaks down coatings at the bottom first. Redirecting irrigation heads often adds years to a finish.

Checking Rust Depth and Metal Loss

To judge rust depth, scrape a rusty spot with a stiff putty knife or awl. Loose flakes that leave firm, shiny metal underneath mean surface rust, which is restorable. If the awl pushes through, or the scale comes off in layers and leaves a visibly thinner section, the metal has lost real thickness. Look first at the bottom rail, where pickets pass through or meet the rails, at the base of posts where they enter concrete or soil, and inside hinge knuckles. Water collects and sits in these spots, so they fail first. A gate that is solid in these areas is usually solid overall.

On hollow tube, tap along the length with a small hammer. A dull thud or a crunchy feel suggests internal rust or trapped water. Pinholes or rust weeping from seams mean the tube is rotting from inside. Those sections usually need replacement rather than coating.

Weld Cracks and Stress Points

To check welds, wire brush them to bare metal and look closely in good light, ideally with a magnifier. Hairline cracks often start at the toe of the weld or at hinge and latch mounts, where stress concentrates. A crack that reappears after brushing is real and needs grinding out and rewelding, not filling. Hinge and latch brackets take the most cyclic loading. If the gate has been slammed by wind or a closer that hits too hard, those welds fatigue first.

Frame Alignment and Post Issues

To check frame straightness, measure both diagonals of the frame. If they differ noticeably, the frame is racked. Also run a string line along the top and bottom rails, and lay the gate flat on a level surface to check for twist. Mild racking can often be corrected. A badly twisted frame may cost more to fix than to rebuild.

Before blaming the gate, rule out the support. A gate that drags or sags is often hanging from a loose or leaning post, a rotted post base, or worn hinge pins. Grab the latch end and lift. Movement at the hinge or post points to hardware or post repair, not frame replacement. Post bases buried in soil or set in concrete without a cap often rot at ground level. Excavating a few inches to inspect the post base can reveal the real problem.

Lead Paint Safety First

Old gates commonly carry lead-based paint. Test with a lead test kit before sanding, wire wheeling or heat stripping. Dry sanding or torching old paint without containment spreads lead dust onto patios, soil and garden beds. If lead is present, use wet methods, plastic sheeting, and a properly rated respirator, or hand the stripping to a shop set up for it. This step protects children, pets, and anyone who uses the yard.

Stripping Methods That Work

Abrasive media blasting gives the best surface for a long-lasting coating, because it removes rust from pits that wire wheels only polish over. Chemical strippers work on paint but not on rust. Wire wheels and flap discs are acceptable for small areas, but they leave rust in the bottoms of pits, and that rust keeps spreading under new paint. If blasting is not practical, a combination of needle scaling, wire wheeling, and hand tools can prepare the surface, but expect shorter coating life.

Bare steel flash rusts quickly, and faster in humid coastal air. Prime blasted or stripped metal the same day, ideally within a few hours. Wipe it down with a suitable solvent first, never with plain water.

Repairing Damaged Sections

Repair pitted or thinned areas by cutting out and welding in new steel of matching size, or by building up with weld and grinding flush. Body filler or epoxy putty is cosmetic only. Use it to smooth shallow pits after the structure is sound, never to restore strength.

When adding new steel to an old gate, match the original profile. That means bar size, picket spacing, collars and scrolls. Many scrolls, finials and castings are still available as stock parts, and an experienced fabricator can forge or bend replacements. Losing ornaments does not automatically mean replacing the gate.

Drainage Details That Prevent Future Rot

Drill small drain or weep holes at the low points of hollow rails and posts so trapped water can escape. Cap open tube tops. Many old gates rust from the inside because rain and sprinkler water enter at the top and have no way out. A 3/16 inch hole at each low point, deburred and primed, makes a measurable difference in service life.

Coating Systems for Coastal Air

A zinc-rich primer under a quality exterior topcoat is the standard field-applied system for steel near the coast. Primer and topcoat should come from the same product system so they are compatible. Brush primer into joints and crevices, because spray alone often bridges over gaps.

Hot dip galvanizing gives the longest corrosion protection, but it requires full stripping. Hollow parts need vent holes so they do not burst in the zinc bath, and thin or ornate pieces can warp from the heat. Painting over galvanizing requires proper surface prep or the paint will peel.

Never weld, grind or torch galvanized steel without good ventilation and respiratory protection. Zinc fumes cause metal fume fever. Grind the zinc off the weld area first.

Powder coating is tough, but it still needs blasted, clean metal underneath, ideally over a zinc-rich or galvanized base when the gate is near the ocean. Once powder coat is chipped, moisture creeps underneath it, so chips should be touched up promptly.

Carlsbad's late spring and early summer marine layer leaves morning dew on metal. Paint mid-day, after the surface is dry and has warmed above the dew point. Coating damp steel at dawn traps moisture and leads to early failure.

Fall Santa Ana conditions are dry and good for coating cure. However, the winds blow dust onto wet paint and can slam unsecured gates. That slamming cracks welds at hinges and latches over time. A gate stop and a properly adjusted closer protect a freshly restored gate.

Hardware Choices That Last

Stainless hardware resists salt air. Where stainless bolts or hinges contact carbon steel, isolate them with nylon washers or sleeves and paint over the joint. In a salty, wet environment the carbon steel next to the stainless can corrode faster. Grease hinges and latches at installation and at each annual inspection.

Ongoing Care Near the Ocean

For upkeep, rinse coastal gates with fresh water every few months to wash off salt. Inspect at least once a year, focusing on the bottom rail, post bases and hinges. Spot prime and touch up any chip as soon as you see rust bloom. A small touch-up now prevents a full strip later.

When Restoration Makes Sense

Restoration usually makes sense when the frame is square or correctable, rust is mostly surface, and the damage is limited to a few pickets or a rail. Replacement is the better choice when multiple main rails or posts have lost thickness, hollow sections are rotted through in many places, or the frame is badly twisted. The decision comes down to remaining metal thickness, weld integrity, and whether the frame can hold alignment under daily use and coastal wind.
